This tool shows a schematically drawing of the defined pipeline in the workspace panel. Prior using this tool, the input tables ORIGIN and POLYDIF have to contain data, tested and processed. Depending on how far the project has been processed, additional information such as the displaced pipeline are also available.

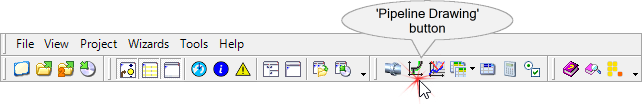

This tool can be found by clicking on the 'Pipeline Draw' TmainDraw button on the main toolbar

Pipe Draw Button On Toolbar


by selecting from menu Tools > TmainDraw Pipeline Draw

Pipe Draw Button On Menu

The Pipeline Overview will appear in the workspace panel.

Click to expand/collapseHow to zoom and pan
Click to expand/collapseChanging the views and details
Click to expand/collapseHow to print/copy the pipeline overview

PipeDraw, last changed: 11/4/2020
